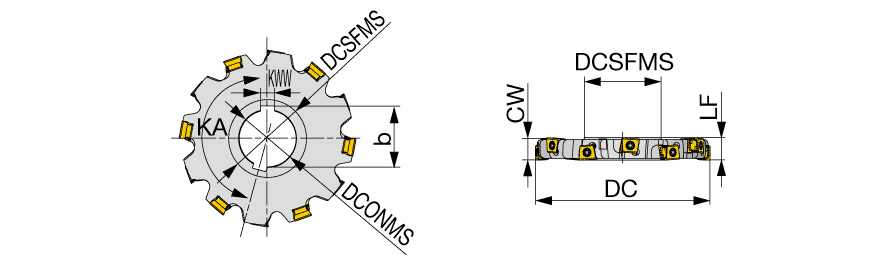

| Cutting Diameter (DC) | 160 mm | Overall Length (OAL) | 19 mm |
| Cutting Item Count (CICT) | 14 | Master Insert Identification (MIID) | LMEU1208... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 7 | Application | | Slot Milling | |
| Cutting Depth Maximum (CDX) | 51.5 mm | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Hub Thickness (THUB) | 19 mm | Body Material | Steel |
| Cutting Width (CW) | 19 mm | Unit | M |
Product Features
| FamilyDesc | ดอกกัดร่อง slot แบบ axial drive | FamilyName | ASN |
| COO | USA | BrandName | Tungaloy |
Shipping Info
PackageWeight
2.3200
Name

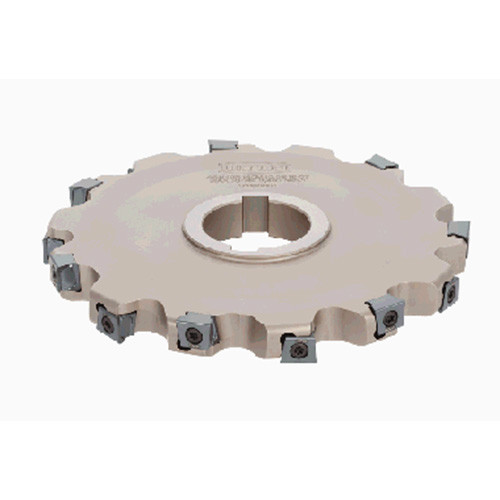

Disc w/Hole Indexable Slotting Cutters
FamilyName
ASN
BrandName
Tungaloy
