| Applicable Material | | Stainless Steel | | Coating | CrAlN |
| Application | | Inserts for miniature | | Grade | ST4 |

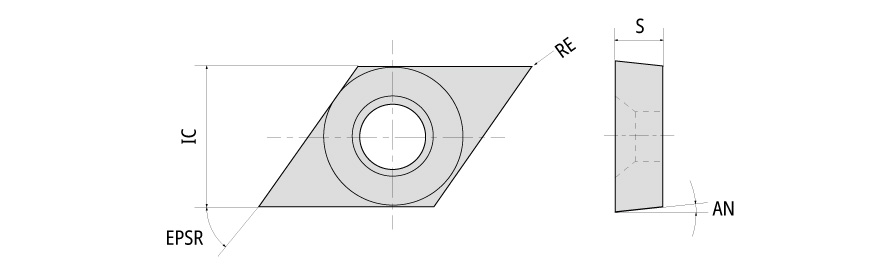

| Corner Radius (RE) | 0.18 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 3.97 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 55 Degrees | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | DCGT-YL type insert |
Shipping Info
PackageWeight
0.0049
Name
Turning Indexable Inserts
FamilyName
DCGT-YL type insert
BrandName
NTK Cutting Tools
