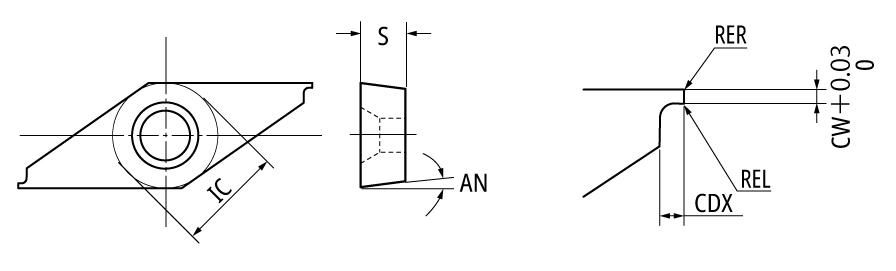

| Application | | Inserts for miniature | | Depth of Cut Maximum (APMX) | 2.6 mm |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 35 Degrees | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Depth Maximum (CDX) | 3 mm |
| Coating | TiCN | Unit | M |
| Grade | VM1 |
Product Features
| COO | Japan | BrandName | NTK |
| FamilyName | CSV series / Grooving |
Shipping Info
PackageWeight
0.0022
Name

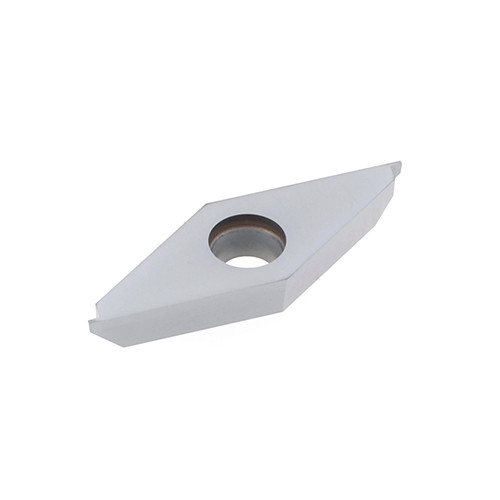

Turning Indexable Inserts
FamilyName
CSV series / Grooving
BrandName
NTK
