| Cutting Diameter (DC) | 8 mm | Application | | Endmill | |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Corner Radius (RE) | 0 mm |
| Depth of Cut Maximum (APMX) | 6 mm | Grade | AC3 |
| Cutting Edge Material | Carbide | Peripheral Effective Cutting Edge Count (ZEFP) | 2 mm |
| Coating | TiAlCrN-TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 35 Degrees | Unit | M |
| End Shape | Corner Radius |
Product Features
| COO | Taiwan | BrandName | NTK |
| FamilyName | RWEM type Solid endmill / S-mill series |
Shipping Info
PackageWeight
0.0363
Name

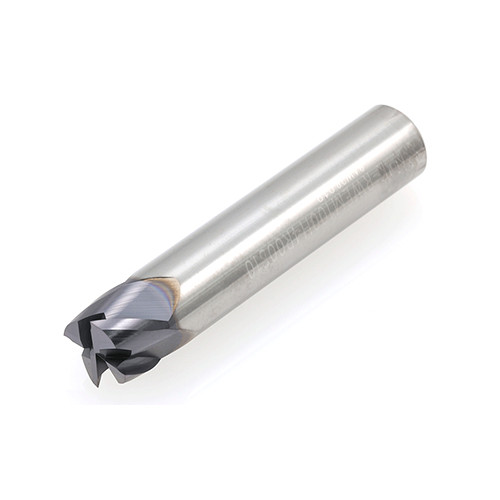

Square & Corner Radius End Mills
FamilyName
RWEM type Solid endmill / S-mill series
BrandName
NTK
