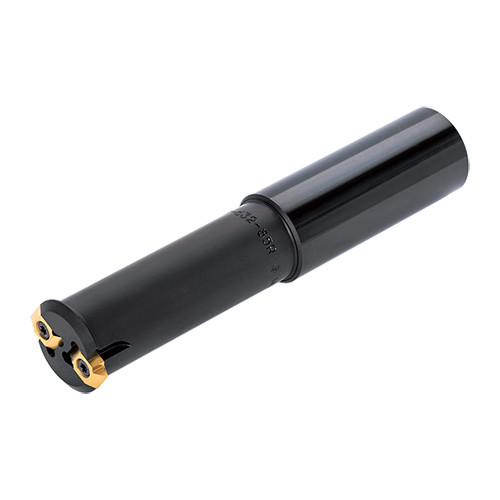

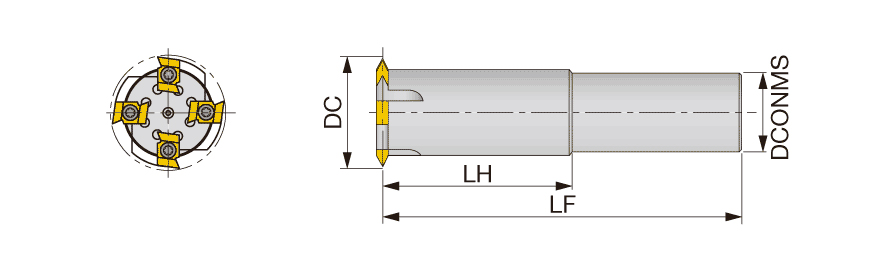

| Cutting Diameter (DC) | 60 mm | Tool Type | Indexable thread mills |
| Connection Diameter Machine Side (DCONMS) | 42 mm | Measurement Type | Metric |
| Overall Length (OAL) | 190 mm | Cutting Item Count (CICT) | 4 |
| Master Insert Identification (MIID) | T2-R14 | Head Length (LH) | 100 mm |
| Body Material | Steel | Thread Size | M70 - M85 |
| Application | | Ext. Thread Milling | Int. Thread Milling | | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| FamilyDesc | ดอกกัดเกลียวแบบ หนึ่งฟัน | COO | JAPAN |

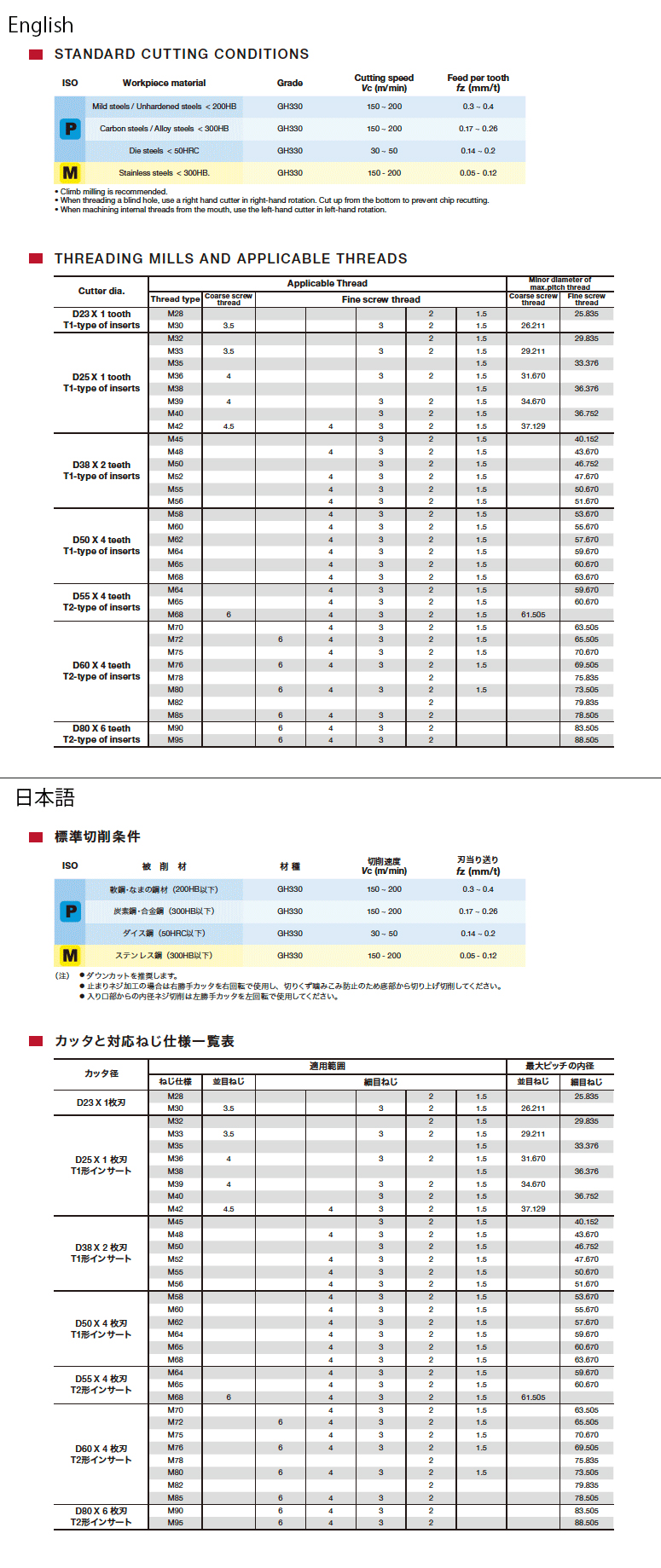

| Remarks | Climb milling is recommended. When threading a blind hole, use the right hand cutter in right hand rotation. Cut up from the bottom to prevent chip recutting. When machining internal threads from the mouth, use the left hand cutter in left hand rotation. |
Shipping Info
PackageWeight
2.4900
