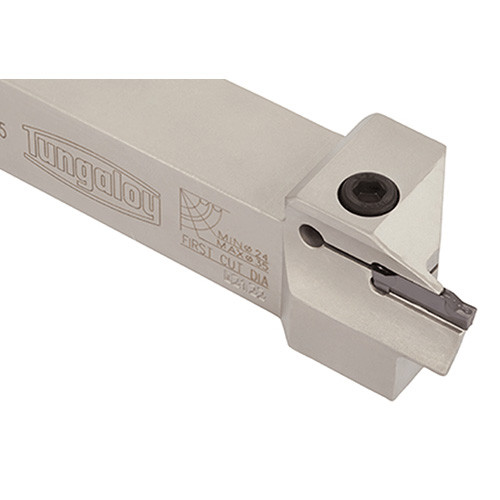

CTFL2525-5T25-070110
ตัวจับยึดเครื่องมือสำหรับการกลึงร่องและกลึงที่บริเวณหน้าตัดลึก
Price: Log in For Price

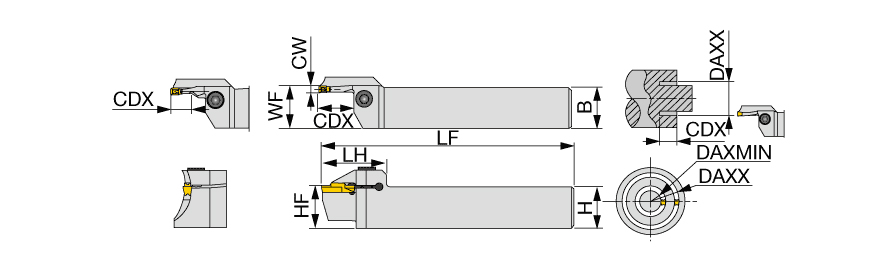

| Shank Width (B) | 25 mm | Head Length (LH) | 49 mm |
| Shank Height (H) | 25 mm | Minimum Bore Diameter (DMIN) | 70 mm |
| Cutting Width (CW) | 5 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Overall Length (OAL) | 150 mm | Functional Width (WF) | 25.6 mm |
| Work Piece Parting Diameter Maximum (CUTDIA) | 110 mm | Measurement Type | Metric |
| Application | | Face grooving | | Unit | M |
Product Features
| FamilyDesc | ตัวจับยึดเครื่องมือสำหรับการกลึงร่องและกลึงที่บริเวณหน้าตัดลึก | FamilyName | CTFR/L |

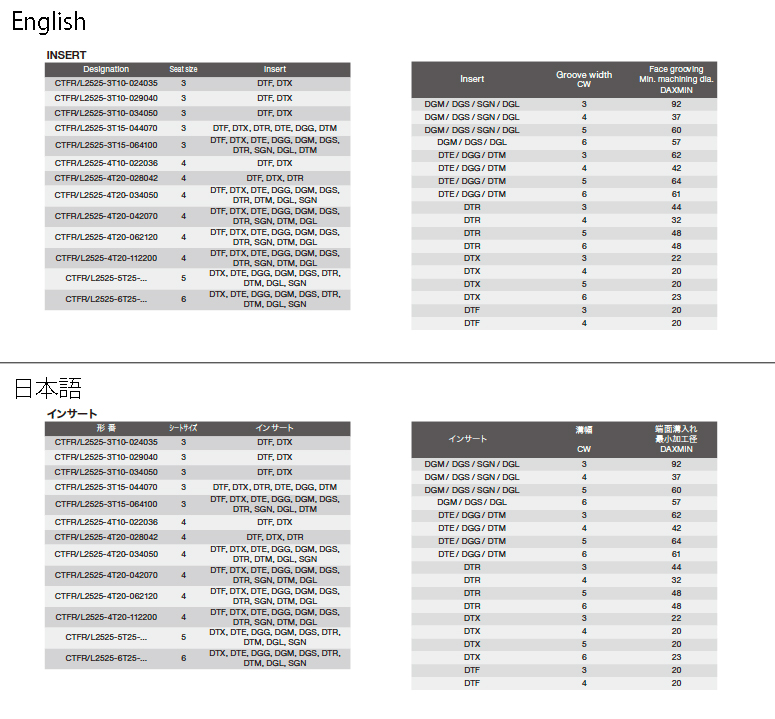

| Remarks | When depth is deeper than (insert length 1.5 mm), 1 corner type is recommended. See applicable inserts table. Use the right hand insert for the right hand holder with DTF insert. For "DAXMIN (Axial groove inside diameter minimum)", click on "More Info". Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
PackageWeight
0.7810
Name
Face Groove/Turn Indexable Holders
FamilyName
CTFR/L
BrandName
Tungaloy
Related Documentation
Insert geometry limits "DAXMIN (Axial groove inside diameter minimum)".
