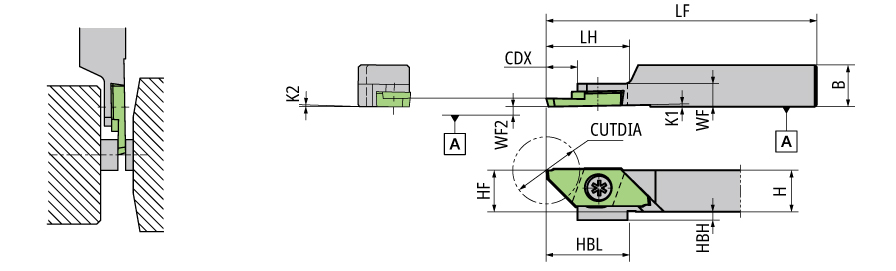

| Cutting Depth Maximum (CDX) | 7.5 mm | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 12 mm | Application | | Parting | |
| Shank Width (B) | 12 mm | Body Material | Steel |
| Functional Width (WF) | 5.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 85 mm | Head Bottom Offset Height (HBH) | 0 mm |
| Head Length (LH) | 20 mm | Unit | M |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |

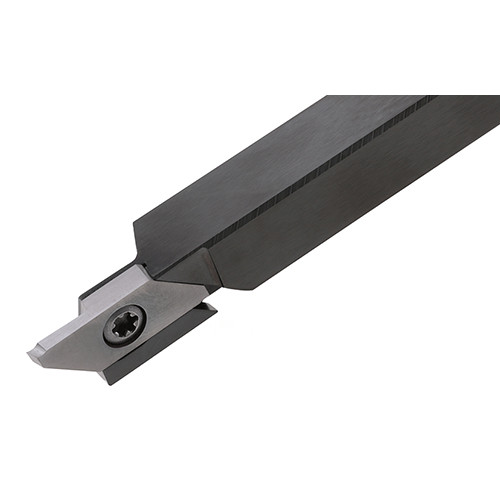

| FamilyName | CTPA-SUB type toolholder for sub-spindle |
Shipping Info
PackageWeight
0.0961
Name
Groove/Turn Indexable Holders
FamilyName
CTPA-SUB type toolholder for sub-spindle
BrandName
NTK Cutting Tools
